For over a decade, our factory has been a leader in the production of high-quality solar grounding lugs. We take pride in delivering cutting-edge technology that ensures superior performance.
Our affordable grounding lugs are specifically designed to meet the unique requirements of various solar panel systems. With a focus on compatibility, we offer customized solutions tailored to your specific project needs.
Experience the benefits of our grounding lugs, including cost savings and faster installation times. Our innovative designs guarantee efficient grounding solutions for your solar projects.
We are ready to answer right now! Sign up for a free consultation.
I consent to the processing of personal data and agree with the user agreement and privacy policy

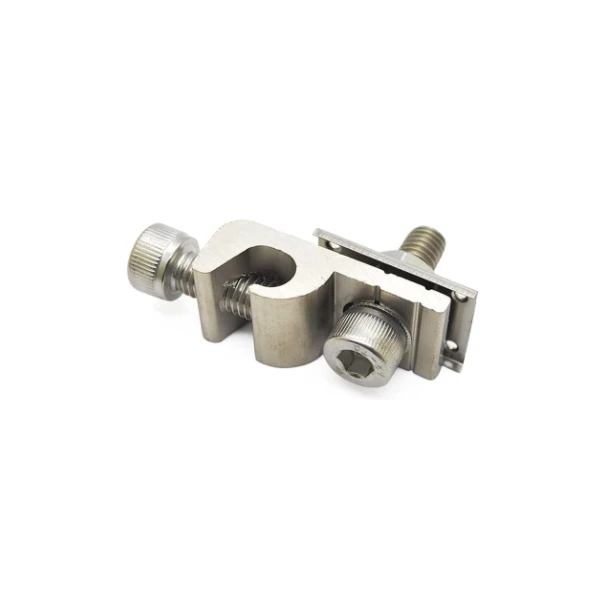

Solar grounding lugs are critical electrical components designed to create a secure grounding connection between photovoltaic modules, mounting structures, and the grounding system.
When the fastening screw is tightened, the integrated grounding spike penetrates the anodized aluminum surface or conductive metal structure, forming a reliable metal-to-metal electrical bond. This ensures efficient dissipation of static electricity and fault current from the solar array to the grounding copper conductor.
ALV solar grounding lugs are engineered for lightning and surge protection, enhancing system safety and long-term operational reliability across various solar mounting applications.
Widely used in Roof Mounting Systems, Ground Mount Systems, and Solar Carport Structures.
Equipped with grounding pins and high-grade stainless steel fasteners, these grounding lugs provide dependable electrical bonding to help protect PV systems from lightning-induced surges and electrical faults.
Compatible with most aluminum photovoltaic rails and steel structures, including roof, ground, and carport systems, as well as C-beam, U-beam, and H-profile steel supports.
Ideal for residential, commercial, and off-grid applications such as RVs, boats, cabins, garages, sheds, and remote solar power systems.
Manufactured from nickel-plated aluminum alloy combined with stainless steel components, ensuring excellent corrosion resistance and long service life in harsh outdoor environments.
The pre-assembled design minimizes installation time and labor costs. No special tools are required, allowing quick and secure grounding connections on-site.
| Material | Nickel-plated aluminum grounding lug, stainless steel barbed shim, SUS304 bolts & nuts |
| Specification | Standard or Customized (per drawing) |
| Package Dimensions | 3.58 × 3.46 × 1.38 inches |
| Item Weight | 8.8 ounces |
| Application | Roof / Ground / Carport PV Systems |
| Warranty | 10 Years |
| Service Life | 25 Years |
ALV provides multiple grounding lug models designed to match different rail profiles, grounding cable sizes, and installation requirements.
For technical guidance or model selection, please contact us.

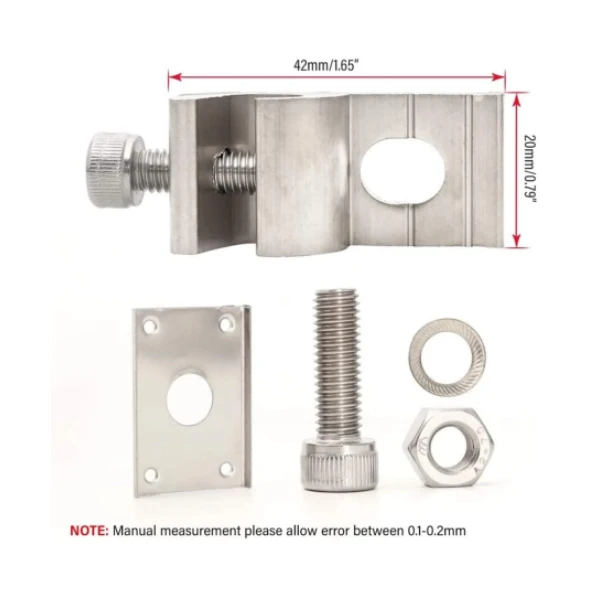

Each grounding lug assembly includes a grounding lug body, barbed shim, stainless steel bolt, and nut, ensuring stable electrical contact and long-term durability.
They provide a secure electrical connection between PV modules, mounting structures, and the grounding system to safely discharge excess current and prevent electrical hazards.
Yes. They are suitable for aluminum rails and steel supports used in roof, ground, and carport solar installations.
Absolutely. They are widely used in off-grid and remote solar power installations to ensure proper electrical grounding.
Nickel-plated aluminum alloy combined with SUS304 stainless steel components for superior corrosion resistance and durability.
Yes. They are designed to withstand rain, UV exposure, and harsh outdoor conditions.
No. The pre-assembled structure allows for quick installation using standard tools.
Yes. They are suitable for small residential systems as well as large commercial and utility-scale installations.
Yes. All products are manufactured in compliance with relevant electrical and safety standards.
Yes. Free samples are available upon request for testing and evaluation.
For pricing, customization, or technical support, please contact us. Our team is ready to assist with your solar grounding solutions.
