Mid Clamp For Solar Panel Mounting

Mid Clamp for Solar Mounting Systems

The mid clamp is a crucial component that ensures solar panel stability and prevents slippage, even under high winds or extreme weather. It securely holds panels on mounting rails without damaging frames or compromising structural integrity.

Installed at regular intervals along panel sides, mid clamps feature adjustable designs to fit different panel sizes and thicknesses, ensuring a tight and secure fit for various solar module types.

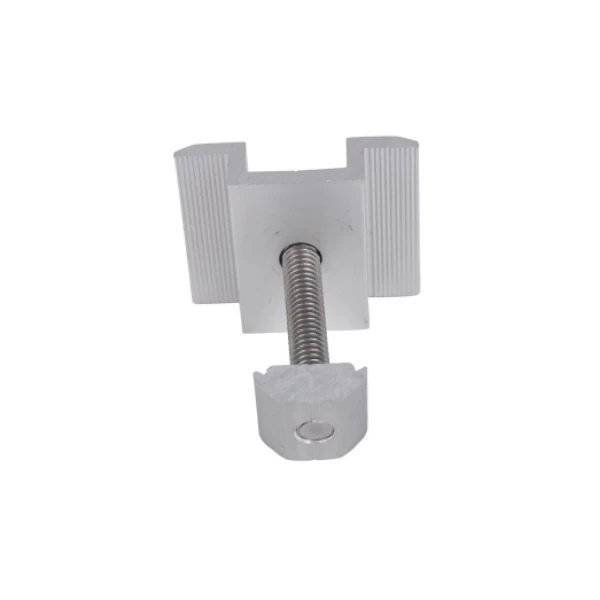

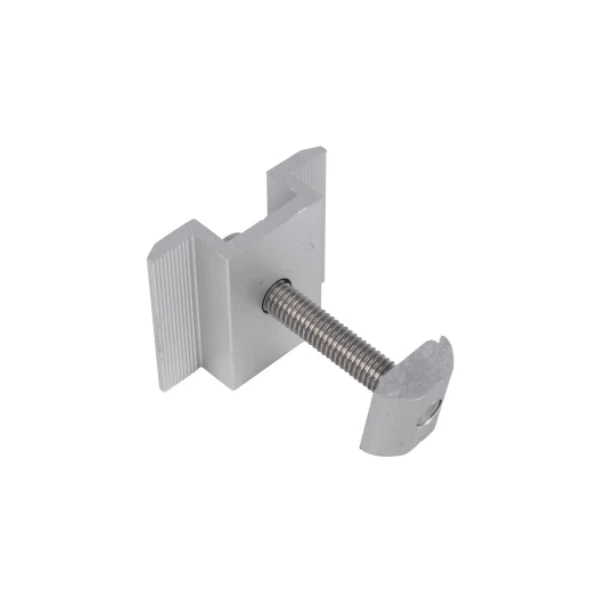

Key Components of a Mid Clamp Set

• Aluminum Alloy 6005 T5 Mid Clamp: Durable, corrosion-resistant body for long-lasting performance.
• Stainless Steel (SS) Bolt and Flange Nut: Secure fastening to rails and panel frames.
• SS Spring Washers with Rubber Pads: Protect panels while providing a firm grip.

Manufacturing Process

1. Extrusion of aluminum alloy 6005
2. T5 tempering and anodizing for corrosion resistance
3. Precision cutting by laser or saw to exact sizes
4. Internal tapping for secure fastening
5. Thorough cleaning to remove impurities
6. Assembly of stainless steel washers and bolts
7. Rigorous quality control including load testing, dimensional checks, and visual inspections

Advantages of Our Mid Clamp

• Easy Installation: Quick setup with standard Allen or hex wrenches.
• Versatility: Compatible with a wide range of solar panel brands and mounting systems; multiple sizes and materials available.
• Durability: Premium 6005 T5 aluminum alloy and SS304 stainless steel for corrosion resistance and long service life.
• Weather Resistant: Withstands wind speeds up to 60 m/s and snow loads up to 1.5 KN/m².
• Wide Compatibility: Fits most solar panels, customizable for unique project requirements.

Specifications

Why Choose Us as Your Mid Clamp Supplier?

• Experienced Manufacturer: Years of expertise in design and production, offering reliable products and professional support.
• Premium Quality: High-grade materials and advanced manufacturing ensure exceptional strength and durability.
• Competitive Pricing: Market-driven pricing with flexible options tailored to your project.

Frequently Asked Questions (FAQ)

What panel sizes can the mid clamp accommodate?

Compatible with most PV modules; customization available for special sizes and thicknesses.

What tools are needed to install the mid clamp?

Typically an Allen wrench or hex key; some designs may require additional locking components.

Are mid clamps suitable for all types of solar panels?

Yes, adjustable design fits most standard panels. Consult us for unique panel types.

How long do mid clamps last?

Made from durable materials, they generally outlast the service life of solar panels.

Are mid clamps recyclable or reusable?

Yes, they are eco-friendly and recyclable. We recommend using new clamps for new installations to ensure maximum reliability.
