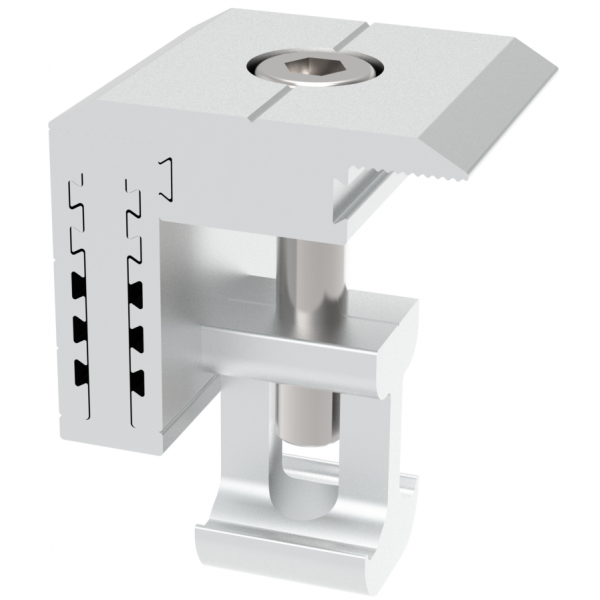

Aluminum Clamps for Fixing Solar Panel Mounting Solar Brackets

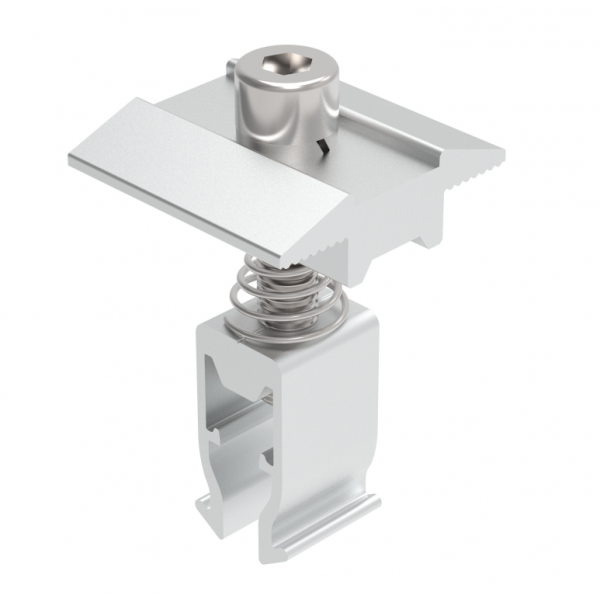

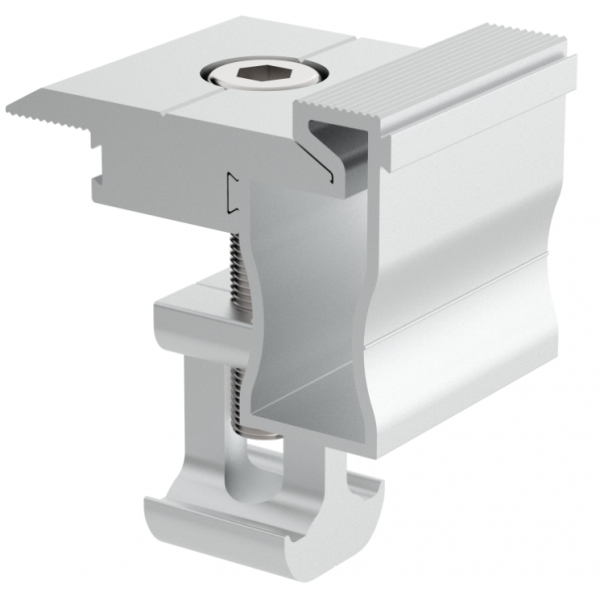

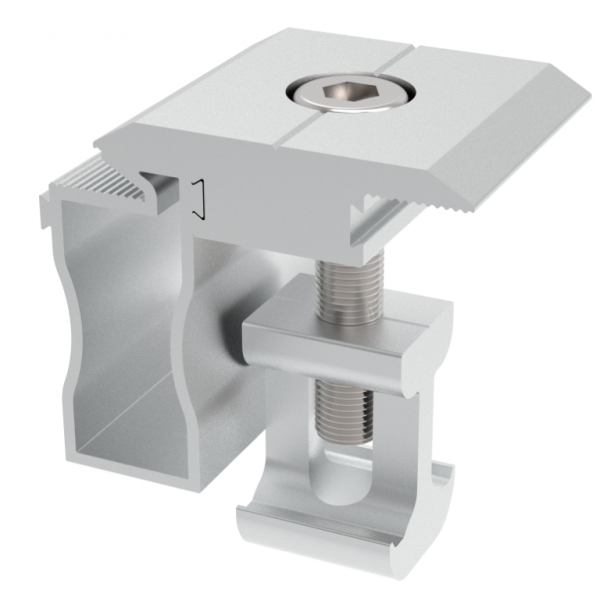

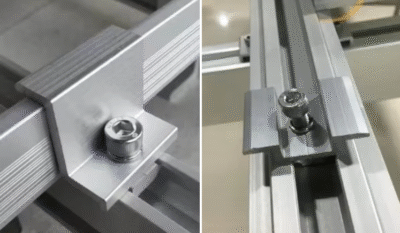

Mid Clamp & End Clamp for Solar Panel Bracket

The Aluminum Solar Clamp is a critical component of a photovoltaic mounting system, designed to securely fix the outermost rails and components of a photovoltaic array. It ensures safe, stable, and long-term reliable operation for your solar power system.

Product Specification

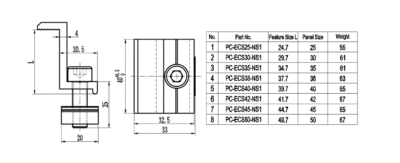

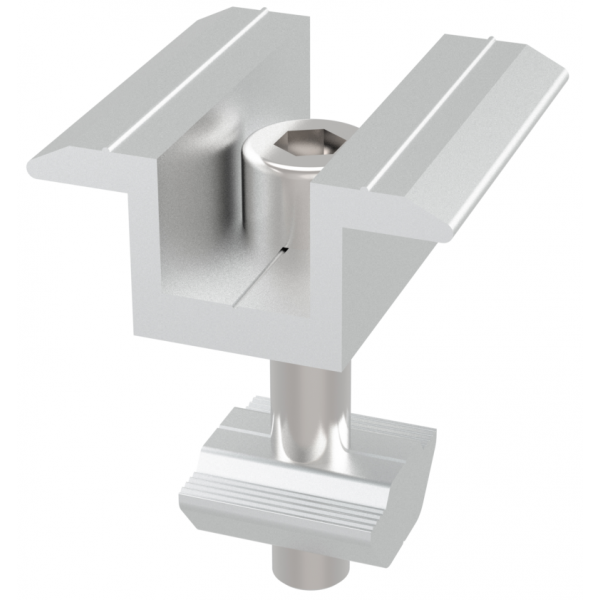

• Product Drawing:
• BOM: G01-0040(AL6005-T5)x1, G91-0020(AL6005-T5)x1, M8*25 Hexagon socket head cap screws(SUS304)x1
• Applicable Module: Framed or frameless panel
• Roof Clearance: Customized
• Wind Load: 60m/s
• Snow Load: 1.4KN/m²
• Width of Solar Module: 751 ≤ A ≤ 1313 mm
• Thickness of Solar Module: 20-50 mm
• Adjustable Angle Range: 15~50°
• Material: AL6005-T5
• Application: Ground, balcony, railing, walls etc.
• Warranty: 10 years

Product Advantages

• Sturdy and Durable: High-quality aluminum alloy (6005-T5) for high strength, corrosion resistance, and long life.
• Strong Locking Force: Unique anti-slip design ensures a secure, non-loose fit, wind and shock resistant.
• Quick Installation: Streamlined design allows easy alignment and installation, improving efficiency.
• Widely Compatible: Perfectly adapts to various standard guide rails, ideal for system integration.

Application

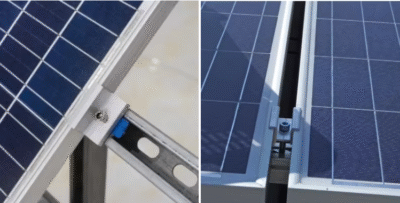

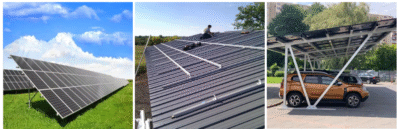

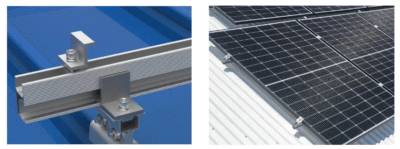

Adaptable to various installation scenarios such as ground, rooftop, and carport rooftops. The center and end clamps securely attach the edge solar panel to the supporting structure, ensuring a safe and reliable installation.

Delivery

• Regular delivery: 5-7 days
• Customized delivery: 15-25 days
• Delivery terms: EXW / FOB / CIF / CFR / DAP / DDP available
